    Internal screw axis bulk material hauling and transporting machine

    Ask Lasest Price
    Brand Name : hongyuan
    Model Number : XL-160-6
    Certification : ISO
    Price : US$950-1550 per set
    Payment Terms : T/T or By Alibaba Trade Assurance:100% full amount in advance
    Supply Ability : Machine in stock
    Delivery Time : Within 2 days after getting the money
    • Product Details
    • Company Profile

    Internal screw axis bulk material hauling and transporting machine

    Internal screw axis bulk material hauling and transporting machine

    Products Application

    Internal screw axis bulk material hauling and transporting machine is one kind of bulk grain conveyor adopt the motor power for truck loading and grain elevator purpose. With the feature of small cubage and easy to carry, it is universally used by the family farm. It is mainly applied for collecting of wheat, corn, paddy, cereal, and any other similar granules like dry sand, cement, sawdust etc. With single phase motor power, it can load the large capacity with low energy consumption and easy to use at home. This is adopt the latest advance starving varnish paint technology.

    Working performance

    Internal screw axis bulk material hauling and transporting machine is easy to carry and operated and is one convenient portable grain inhaling suction equipment.


    Specifications

    Model No.Length (Meters)Pipe diameter

    Loading

    Capacity(t/h)

    Motor phase-power(kw)InstallationStructureConveying height
    XL-100-66100mm5-8

    Single phase

    -220V-3kw

    Vehicle mountedSteel screw blade inside3-4m
    XL-100-88100mm5-8

    Single phase

    -220V-3kw

    Vehicle mounted


    Steel screw blade inside3-4m
    XL-100-1010100mm5-8

    Single phase

    -220V-3kw

    Vehicle mountedSteel screw blade inside3-4m
    XL-100-1212100mm5-8

    Single phase

    -220V-3kw

    Vehicle mountedSteel screw blade inside3-4m
    XL-160-66160mm15-20

    Three phase

    -220V-4kw

    Vehicle mountedSteel screw blade inside3-4m
    XL-160-88160mm15-20

    Three phase

    -220V-4kw

    Vehicle mountedSteel screw blade inside3-4m
    XL-160-1010160mm15-20

    Three phase

    -220V-4kw

    Vehicle mountedSteel screw blade inside3-4m
    XL-160-1212160mm15-20

    Three phase

    -220V-4kw

    Vehicle mountedSteel screw blade inside3-4m

    Notice:

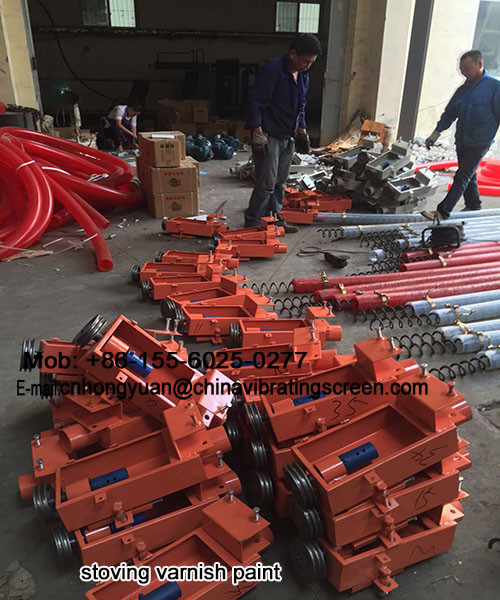

    Detailed Images

    The pipe material is premium PVC material .The screw blade is manganese steel.

    Pilot Running

    1. According to the packing list by piece count, check the parts are complete after opened the box.
    2. When commissioning, the tube should try to keep nature, try to make the pipe smooth turning and to prevent wear pipe.
    3. When debugging, flexible screw conveyor machine should use the international 4 square power cord.
    4. When Installing the V-belt of motor, it should set the small wheel first, then set the big wheel.
    5. Don’t racing the engine while the machine working, to prevent wear the pipe.
    6. In the process of flexible screw conveyor machine installed to the truck, the machine head should be outward installation and then use the screw bolt to fix it.
    7. If the material clogging while working should immediately shut down, clean up and then restart.
    8. If the blade damaged in the process of using, you can use welding machine to weld.

    Special Notes

    Please do not let the machine running without loading; Please do let the machine running with loading; Please do not let the machine do the idling running.

    Related Products

    Packing & Delivery

    Packing in Plywooden Box
    Packing Size:1200*1200*500mm
    Gross Weight: 180kgs
